Securing reliable backup power is a strict operational mandate for industrial and commercial facilities. Power outages halt production lines, disrupt data systems, and compromise site safety. Choosing the right power generation equipment minimizes downtime and protects facility productivity. Facility managers face a distinct procurement challenge: balancing capital expenditure with long-term operational efficiency, maintenance accessibility, and thermal management.
Addressing these specific needs often points toward an Open Type Generator. By stripping away the sound-attenuated canopy, this heavy-duty diesel configuration offers a highly efficient, accessible solution for specific infrastructure setups. This guide provides a rigorous technical evaluation of open architecture systems. We detail exactly when and why an exposed frame design represents the optimal technical choice for high-capacity power requirements.
Thermal Efficiency: Open designs maximize ambient airflow, reducing heat buildup by 15–20% and extending engine lifespan under heavy thermal loads.
Maintenance Accessibility: The lack of an enclosure allows for rapid visual inspections, direct engine diagnostics, and reduced Mean Time To Repair (MTTR).
Cost Optimization: Removing the sound-attenuated canopy lowers upfront purchase and shipping costs, offering a superior cost-to-power ratio for facilities with existing generator rooms.
Deployment Constraints: High noise emissions and zero inherent weather protection require dedicated indoor housing, specialized shelters, or restricted outdoor industrial applications.

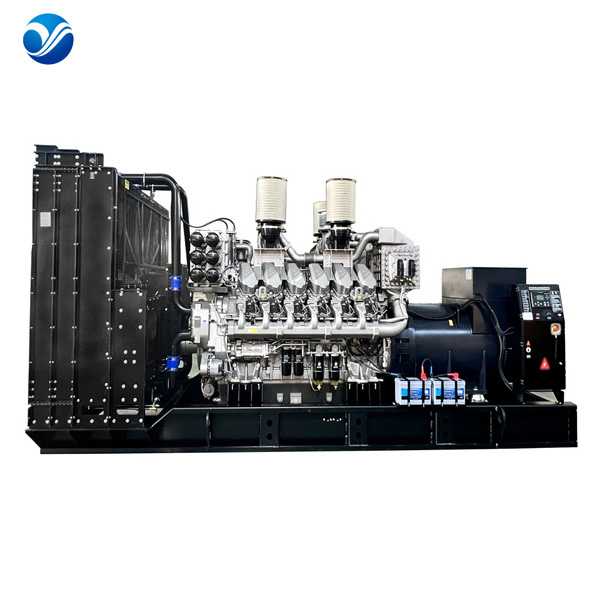

An open frame generator is engineered with its core structural components fully exposed. The engine, alternator, base frame, cooling radiator, and control panel mount directly on a rigid steel skid. Manufacturers omit the sound-attenuating or weather-proof canopy entirely. This minimalist structural approach prioritizes raw power delivery over environmental shielding. Removing the external housing reduces the physical footprint slightly. It also drastically alters how the machine interacts with its surrounding environment. You get direct access to the block, fuel lines, and electrical harnesses.
Diesel engines remain the industry standard for high-capacity backup power. The combustion mechanics of diesel fuel provide superior energy density. This translates to exceptional fuel efficiency during extended runtimes. Heavy-duty diesel engines generate massive torque. They handle sudden load steps far better than natural gas alternatives. This robust combustion process generates immense heat and vibration. The open architecture perfectly complements diesel mechanics. It allows unrestricted heat dissipation. The engine block and alternator avoid thermal throttling during peak operational demands.
Open units thrive in environments where raw performance outweighs aesthetic or acoustic concerns. You typically find these systems installed in dedicated plant rooms within large manufacturing facilities, hospitals, and data centers. Mining sites, agricultural facilities, and heavy industrial plants utilize them heavily. In these settings, sustained power output is the only goal. The surrounding infrastructure usually already accommodates the noise and ventilation requirements. This makes the open configuration a highly logical integration.
Selecting a generator requires a strict site-specific evaluation. Consider the contrast between a residential villa and a heavy manufacturing plant. A residential setting demands a silent type generator. Noise pollution directly impacts the living environment, and the unit sits outdoors without a dedicated shelter. Conversely, an industrial facility prioritizes power density and maintenance speed. The ambient noise of the facility often masks the generator. Alternatively, the unit sits in a concrete bunker. The open architecture provides maximum utility here. You avoid wasting budget on unnecessary acoustic paneling.
The physics of unrestricted airflow provide a massive operational advantage. In an enclosed unit, cooling fans force air through restrictive intake louvers, across the engine block, and out through baffled exhausts. An open unit eliminates these physical barriers. Ambient air circulates freely around the engine block, exhaust manifold, and alternator housing. Natural convection combines with the primary radiator fan to create a highly efficient cooling cycle.
Industry benchmarks indicate open designs reduce heat buildup by 15–20% compared to tightly enclosed units. They suit high-ambient-temperature regions perfectly. Facilities running continuous base-load power benefit immensely. Efficient heat dissipation directly translates to slower engine wear. Rubber seals, gaskets, and wiring harnesses degrade much slower. They are not baking inside a hot metal enclosure. Sustained cooling capacity ensures the generator maintains its rated power output without derating during prolonged utility outages.
| Cooling Metric | Open Type Generator | Enclosed Generator |
|---|---|---|
| Ambient Airflow Restriction | Zero restriction | High restriction (louvers/baffles) |
| Average Heat Buildup Reduction | 15% - 20% lower | Baseline |
| Component Degradation Rate | Slower (better heat escape) | Faster (trapped ambient heat) |
| Ideal Operating Environment | High-temperature indoor plant rooms | Outdoor, climate-controlled areas |
Maintenance crews require speed and visibility. The open architecture provides 360-degree accessibility to all critical mechanical and electrical components. Technicians perform direct engine inspections without unbolting heavy access panels. They avoid maneuvering through cramped canopy doors. Unrestricted access fundamentally changes how you execute preventative maintenance.
A mechanic conducts a rapid visual audit of drive belt wear in seconds. They check fluid levels, inspect fuel lines for micro-leaks, and verify electrical connections instantly. When component replacement is necessary, standard lifting equipment and tools fit without spatial restriction. This accessibility drastically reduces labor hours. It minimizes maintenance-induced downtime. Facility productivity gets a direct boost because the backup power system is always ready to deploy.
Procurement strategies heavily favor open units when upfront capital expenditure is a primary constraint. Manufacturing an enclosed generator requires heavy-gauge steel, specialized acoustic foam, weather-sealed access doors, and complex exhaust baffling. Eliminating these materials drops the initial manufacturing cost significantly.
The physical dimensions and weight of an open unit are generally lower than a similarly rated enclosed model. This reduces shipping, handling, and rigging costs. Procurement teams reallocate saved capital easily. Instead of paying for a metal box, facilities invest those funds into higher power capacity engines. They upgrade to advanced automatic transfer switches or sophisticated remote monitoring control systems.
Industrial power systems rarely exist in a vacuum. They must integrate into complex, pre-existing facility grids. Open units offer unmatched aftermarket flexibility. The exposed frame lets engineers easily mount custom exhaust silencers. They route extended fuel lines to bulk storage tanks without hassle. Installing heavy-duty block heaters for cold climates takes minimal effort.
This adaptability extends to spatial integration. Plant rooms often have highly specific footprints and connection points. An open frame allows installers to route conduit and exhaust piping exactly where it needs to go. Nobody has to cut through a factory-sealed canopy. Seamless integration accelerates installation timelines. The generator aligns perfectly with the facility's unique mechanical layout.
The primary drawback of an open configuration is the complete lack of sound attenuation. Heavy-duty diesel engines generate severe mechanical clatter, combustion noise, and exhaust roar. An open unit operating at full load easily produces noise levels between 95 and 115 decibels (dB) at a distance of one meter. A high-quality silent unit suppresses that noise to 65–75 dB.
This acoustic reality dictates deployment. Noise disqualifies open units in hospitals, urban commercial zones, and hospitality venues. You need a highly engineered, soundproofed room to make it work there. Conversely, remote industrial sites, deep mining operations, or isolated agricultural zones handle this high decibel output easily. Standard personal protective equipment manages the exposure for site workers.
Open units possess zero inherent environmental shielding. They are highly vulnerable to moisture, wind-blown dust, salt ingress, and extreme weather. Exposing an open alternator to heavy rain or corrosive coastal air leads to rapid electrical failure. Severe mechanical rusting follows shortly after. Enclosed units feature specific Ingress Protection (IP) ratings designed to repel these elements.
You can use an open type diesel generator outdoors under very specific conditions. Temporary construction sites or mining operations deploy open units beneath basic overhead shelters. Lean-tos or heavily ventilated shipping containers work well. These structures prevent direct precipitation from striking the machine. They still allow the massive airflow required for cooling. Unless you construct a dedicated external shelter, open units must remain strictly indoors.
Housing an open unit indoors requires rigorous architectural planning. A dedicated generator room handles massive thermal and respiratory demands. The engine requires a tremendous volume of fresh air for both combustion and radiator cooling. Facility engineers calculate the exact cubic feet per minute (CFM) required. They install appropriately sized intake louvers and motorized exhaust fans.
Exhaust routing is equally critical. The system safely expels hazardous, high-temperature combustion gases outside the facility. You need insulated, double-walled exhaust piping. Route it away from building air intakes, pedestrian zones, and flammable materials. Inadequate airflow causes the room to overheat. The generator shuts down precisely when you need it most.
Calculate total CFM requirements for engine combustion and radiator cooling.
Install oversized intake louvers on the prevailing wind side of the building.
Mount heavy-duty motorized exhaust fans to pull hot air out of the room.
Route double-walled, insulated exhaust piping to a safe exterior discharge point.
Seal all wall penetrations with fire-rated acoustic caulking.
When installing an open unit inside a building, the facility itself becomes the acoustic canopy. Mitigation tactics for indoor installations include lining the plant room walls with fire-rated acoustic paneling. Install sound-baffled air intakes to prevent noise from escaping through the ventilation shafts.
Vibration isolation is mandatory. Heavy-duty diesel engines transfer significant kinetic energy into the floor. Install spring-loaded vibration isolators or thick elastomeric pads between the generator base frame and the concrete foundation. Facility managers analyze the cost of this room-level acoustic and structural treatment. They compare it against the cost of buying a pre-enclosed generator to determine the most viable path forward.
Indoor installations trigger strict regulatory oversight. Local fire codes mandate specific clearances around the generator for safe egress. Occupational noise exposure limits require personnel entering the generator room while the unit runs to wear appropriate hearing protection.
Housing hundreds of gallons of diesel fuel indoors necessitates secondary fuel containment systems. These prevent environmental contamination if a tank ruptures. Automated fire suppression systems are standard requirements in dedicated generator rooms. They often utilize clean agents or foam rather than water. Adhering to these safety standards ensures operational continuity. It protects the facility from severe legal and physical liabilities.
An open type generator stands as the most thermally efficient, customizable, and maintenance-friendly option for high-capacity backup power. Removing the restrictive canopy gives facilities superior engine cooling and immediate mechanical access. You see significant reductions in upfront capital expenditure. These benefits materialize only if the facility possesses the necessary infrastructure to manage the intense noise emissions and environmental vulnerabilities inherent to exposed machinery.
Procurement teams should shortlist open units when outfitting dedicated plant rooms or managing strict capital budgets. They support high-load continuous power needs in isolated areas perfectly. Avoid them for fully exposed outdoor use or in highly noise-sensitive urban environments without substantial architectural mitigation.
Audit your intended installation site to verify it accommodates the required airflow and acoustic treatments.
Consult local fire codes and noise ordinances to ensure full regulatory compliance before finalizing procurement.
Request detailed technical specifications and spatial footprint models from generator manufacturers to confirm seamless integration.
Design a secondary fuel containment strategy if installing the unit inside a dedicated indoor plant room.
A: The primary difference is the external housing. An open type generator has exposed components mounted on a skid, maximizing cooling and maintenance access but offering no noise or weather protection. A silent generator is enclosed in a sound-attenuated, weather-proof canopy, reducing noise and allowing for direct outdoor installation.
A: You should not install it fully exposed outdoors. Open units lack weatherproofing and are vulnerable to rain, dust, and corrosion. If used outdoors, place them under a dedicated overhead shelter, canopy, or inside a well-ventilated structure to protect the electrical and mechanical components from direct elemental exposure.
A: An open frame generator typically produces noise levels between 95 and 115 decibels (dB) at a distance of one meter, depending on the engine size. An enclosed, silent unit utilizes acoustic paneling to reduce that output significantly, usually bringing the noise down to a much more manageable 65 to 75 dB.
A: Indoor installations require massive airflow for both engine combustion and radiator cooling. The room must feature engineered intake louvers and exhaust fans capable of cycling thousands of cubic feet of air per minute. You must safely pipe exhaust gases outside using insulated, double-walled ducting.
A: Yes. The lack of an enclosure provides 360-degree access to all components. This significantly reduces the labor hours required for inspections, servicing, and repairs. However, if installed in a dusty environment without proper filtration, it may require more frequent cleaning than a sealed unit.
A: The open design allows unrestricted ambient airflow around the engine block and alternator. This prevents the heat buildup common inside enclosed canopies. Superior thermal management prevents overheating, reduces thermal degradation of hoses and seals, and ultimately extends the operational lifespan of the engine under heavy loads.
