In heavy industry, power continuity is a baseline requirement for operational viability, safety, and revenue protection. Facility managers and procurement engineers face a capital expenditure decision when specifying prime or standby power. You must balance upfront equipment costs with site-specific constraints like noise regulations, weather exposure, and maintenance accessibility. Choosing the wrong equipment architecture leads to severe operational bottlenecks.
While sound-attenuated enclosures are popular, the traditional Open Type Generator remains a highly efficient solution for specific industrial environments. These units strip away unnecessary external housing to deliver raw, accessible power. This guide evaluates the technical realities, primary applications, and implementation risks of specifying these systems for industrial use. We will explore how to match generator architecture directly to your site demands.
Cost-to-Power Ratio: Open type generators offer a lower initial capital expenditure (CapEx) by eliminating the cost of acoustic and weatherproof canopies, making them ideal for facilities with existing dedicated generator rooms.
Maintenance Accessibility: The exposed architecture of an open frame generator allows for rapid visual inspections, easier component access, and reduced downtime during critical servicing.
Environmental Prerequisites: Successful deployment requires strict management of environmental variables, including acoustic zoning, weather protection, and engineered ventilation systems.
Primary Fit: Best suited for indoor industrial plant rooms, remote mining and oil well sites, healthcare backup facilities, agricultural sites, and heavy construction where noise compliance is secondary to raw power and accessibility.

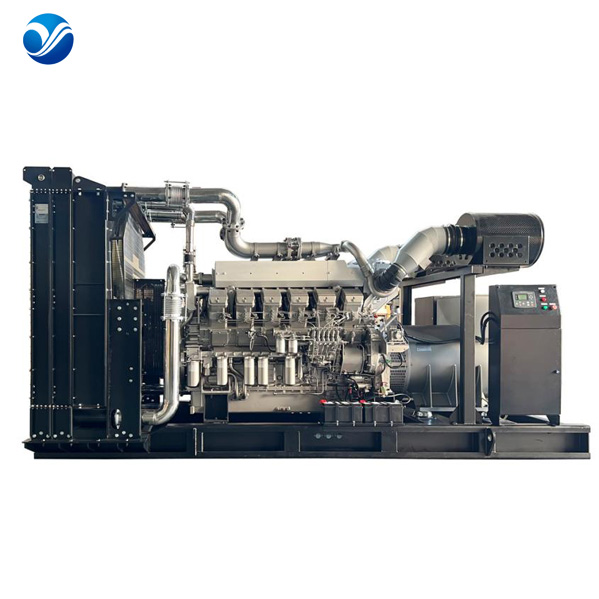

The structural baseline of an open generator focuses entirely on function. The core components include the engine, alternator, cooling system, and control panel. These are mounted directly onto a heavy-duty steel skid base. You will not find sound-attenuating canopies or weatherproof housing on these units. The design prioritizes maximum airflow and immediate physical access to all moving parts. Mechanics can walk up to the unit and immediately put a wrench on the oil drain plug or inspect the fan belts without removing heavy steel doors.
Industrial-grade units feature standard vibration isolation mounts. These rubber or spring isolators sit between the engine/alternator assembly and the rigid steel skid. They prevent destructive mechanical resonance from transferring to the concrete foundation. If you bolt a 1,000 kW engine directly to a floor without isolators, the vibration will eventually crack the concrete and damage nearby sensitive equipment. Many open units also feature integral sub-base fuel tanks. These tanks provide structural rigidity while holding enough diesel for standard operational shifts, usually ranging from 8 to 24 hours of runtime at full load.
You must also understand the technical distinction in power delivery. Standard alternator configurations provide robust, brute-force electricity suitable for heavy motors, pumps, and compressors. However, modern diesel-powered digital control systems can also supply clean, stable power. These advanced setups use precise electronic governors to protect sensitive industrial electronics from voltage spikes. When a massive motor starts across the facility, the electronic governor detects the voltage drop and instantly adjusts the engine throttle to maintain a steady 60 Hz or 50 Hz output.
Specifying an open frame generator requires understanding the physical and operational trade-offs. Upfront capital savings are significant. Open units typically cost less than equivalent enclosed models because you are not paying for heavy steel canopies, acoustic foam, or specialized weather seals. You pay strictly for power generation capability. This makes them highly attractive for facilities that already have a dedicated, secure basement or utility building.
Footprint and power density present another trade-off. Open units require less physical space for the equipment itself. However, they demand larger clearance zones. You must provide ample room for ambient airflow, maintenance access, and occupational safety. Enclosed units contain their own airflow paths, but open units rely entirely on the room's ventilation engineering. If you put an open unit in a tight closet, it will suffocate and shut down on high coolant temperature within minutes.
Thermal dynamics differ drastically between the two designs. Open systems utilize unrestricted, direct ambient airflow cooling. The engine-driven fan pushes air straight through the radiator without navigating acoustic baffles. Enclosed systems require complex engineered ducting to manage heat rejection. Furthermore, open architecture is the preferred standard for multi-megawatt parallel configurations. The lack of walls allows for straightforward busbar routing and synchronized control alignment across multiple units.
| Feature | Open Type Generator | Enclosed Generator |
|---|---|---|
| Visual Inspection | Immediate 360-degree visibility | Requires opening access doors |
| Cooling Mechanism | Direct ambient airflow | Engineered internal ducting |
| Space Requirement | Smaller unit footprint, larger safety clearance | Larger unit footprint, minimal external clearance |
| Noise Level | High (Requires external attenuation) | Low to Moderate (Internally attenuated) |
| Weather Resistance | None (Requires indoor or sheltered installation) | High (Designed for outdoor exposure) |
Continuous production lines and chemical processing equipment require absolute power reliability. A sudden grid failure can ruin batches, damage extrusion dies, or cause hazardous chemical reactions. Open generators provide robust standby and prime power for these loads. Facilities typically install them in dedicated, sound-proofed, and climate-controlled mechanical rooms. This indoor placement eliminates the redundant cost of purchasing an outdoor enclosure.
Successful integration relies on facility-wide engineering. You must route the engine exhaust safely outside using insulated piping. The generator room requires heavy-duty intake louver systems to supply combustion and cooling air. Automated fuel transfer lines are also necessary to pump diesel from bulk exterior tanks to the generator's day tank. You must size the exhaust piping correctly to prevent backpressure, which can choke the engine and reduce its power output.
Mining sites operate in some of the most hostile environments on earth. Drilling equipment, crushing plants, and remote worker camps demand massive prime power. High power output is the strict priority here. Noise is rarely a primary constraint in an active open-pit mine. The open architecture allows site mechanics immediate access to the engine block. They can perform heavy maintenance rapidly in dusty, abrasive environments without fighting rusty canopy hinges.
Deploying these units in mining requires specific upgrades. You must specify dual-stage air filtration systems to protect the engine from silica dust. Heavy-duty alternator coatings prevent winding degradation from abrasive particles. Ruggedized skid bases with drag bars allow bulldozers to relocate the generators frequently as the mine face advances. You also need heavy-duty fuel water separators, as remote fuel deliveries often contain high moisture levels.
Drilling rigs require heavy-duty prime power for drawworks, mud pumps, and emergency operations. Open units offer a superior power-to-weight ratio. This lighter weight facilitates easier transport via helicopter or rough-terrain crane to remote well pads. The lack of a canopy is a distinct advantage for rig maintenance. Crews can perform rapid high-pressure washdowns to clear grease, drilling mud, and corrosive salt-spray directly from the skid.
Safety is paramount in hydrocarbon extraction. Success criteria include ATEX or explosion-proof component ratings where combustible gases may be present. You must install spark arrestors on exhaust lines to prevent ignition sources. Marine-grade corrosion protection coatings are mandatory for offshore platform deployments. All electrical connections must be sealed and potted to prevent saltwater intrusion.
Healthcare facilities cannot tolerate even momentary power loss. Life-support systems, vaccine refrigeration, cleanroom HVACs, and diagnostic imaging equipment depend on critical standby power. Hospitals typically locate their backup power inside secure, isolated basement utility vaults. This indoor strategy bypasses the need for weatherproofing while maximizing physical security against tampering.
Open units in hospitals allow for instantaneous startup and immediate load acceptance. To succeed in this environment, the generator needs high-precision electronic governors for clean voltage regulation. It must feature seamless integration with Automatic Transfer Switches (ATS). Hospital-grade exhaust silencers must be installed in the external piping to keep the surrounding patient areas quiet. You must also comply with NFPA 110 standards for emergency and standby power systems.
Tower cranes, welding rigs, site lighting, and camp infrastructure require temporary prime power. Construction sites are chaotic, dynamic environments. Open generators provide durability, raw power delivery, and ease of transport. Contractors often house them in custom temporary structures. Modified semi-trailers or shipping containers serve as excellent mobile power plants.
Equipment on a construction site takes physical abuse. You must ensure the generator has robust lifting eyes for crane hoisting. Integrated forklift pockets in the skid base are essential for quick repositioning. The structural steel frames must be designed specifically for high-vibration environments to prevent weld fractures. You should also specify oversized alternators to handle the massive inrush currents from starting large crane motors.
Urban emergency services, main water pumps, and wastewater aeration systems rely on backup and peak-shaving power. Municipalities usually house these units in secure, purpose-built utility buildings. Maintenance access is heavily prioritized by city engineers. Open units provide high-kilowatt outputs within a constrained indoor footprint, maximizing the utility of the building space.
Reliability testing is a major factor for municipal infrastructure. The system should include automated load-bank testing capability to verify performance without interrupting the actual water pumps. Large-volume sub-base fuel tanks are required to guarantee extended runtimes during prolonged regional grid blackouts. You must also install block heaters to ensure the engine block remains warm, allowing for a 10-second startup sequence during winter emergencies.
Modern agriculture is highly mechanized. Irrigation pumps, greenhouse climate controls, poultry ventilation, and automated dairy milking parlors require constant electricity. Open generators provide cost-effective prime power for these operations. Farmers can safely house them in existing barns, equipment sheds, or dedicated outbuildings.
Agricultural environments present unique challenges. You must protect the alternator and radiator from agricultural dust, crop chaff, and fertilizer corrosion. Rodent-proofing on all electrical conduits is critical to prevent short circuits. Reliable cold-weather starting capabilities, such as engine block heaters and battery warmers, ensure the unit fires up during winter freezes. You should also elevate the skid base on concrete blocks to keep it away from standing water and animal waste.
Data centers demand mission-critical Tier III or Tier IV backup power. Server arrays and massive cooling chillers must remain online. These facilities install generators in highly secure, purpose-built indoor generator halls. These halls feature engineered acoustics and massive ventilation shafts. The open design allows facility engineers to conduct rapid routine inspections of critical terminals and fluid levels.
Data center power must be flawless. Success requires seamless integration with Uninterruptible Power Supplies (UPS). The generator must achieve sub-millisecond response times to take the load before the battery banks deplete. Sophisticated remote telemetry monitoring is required to track engine health, oil pressure, and fuel levels from a central control room. You must also implement redundant starting systems, utilizing both electric starter motors and pneumatic air-start systems.
You must rigorously assess your indoor versus outdoor deployment realities. An open unit must be protected from direct weather elements. Rain, snow, and direct sunlight will rapidly degrade exposed components. If you lack an indoor space, you must construct a shelter. You cannot simply throw a tarp over the unit and expect it to function when the grid fails.
Calculate the exact square footage required for the unit. You must add mandatory OSHA and NEC clearance zones to this footprint. Electrical codes dictate minimum clearance requirements around live electrical panels to ensure worker safety. You cannot push an open generator flush against a wall. You need at least three to four feet of walking space on all sides for a mechanic to safely swing a wrench or pull a heavy alternator rotor.
Evaluate the structural load-bearing capacity of your concrete pad or installation surface. The foundation must handle both the wet weight of the generator (including full oil, coolant, and diesel) and the dynamic operating forces caused by engine vibration. A standard rule of thumb is that the concrete pad should weigh at least 125% of the generator's total wet weight to properly absorb the mechanical resonance.
Industrial diesel engines are incredibly loud. You must analyze the baseline decibel (dB) ratings of open engines. They typically produce 90 to 105+ dB at a distance of 1 meter. This noise level causes immediate hearing damage without protection. You cannot hold a conversation next to a running open generator.
Evaluate local municipal noise ordinances at your property line. You must also comply with OSHA workplace hearing protection standards for your employees. If you install an open unit indoors, you must calculate the cost of retrofitting the room. You will likely need acoustic baffles, heavy wall insulation, and specialized exhaust silencers to achieve compliance. You must route the exhaust through a critical-grade or hospital-grade silencer before it exits the building exterior.
The primary operational advantage of an open unit is unobstructed access. Mechanics do not have to unbolt heavy access panels or work in cramped, dark enclosures. They have 360-degree access to oil filters, fuel lines, belts, and the alternator. This visibility allows operators to spot minor oil leaks or frayed belts during routine walk-arounds before they turn into catastrophic failures.
Open frames facilitate much easier major overhauls. Tasks like cylinder head servicing or complete engine block replacement are straightforward. You can use an overhead gantry crane directly above the unit to lift heavy components straight up. This accessibility drastically reduces the Mean Time to Repair (MTTR). Faster repairs mean your facility gets back to full production sooner. You do not waste billable mechanic hours dismantling a rusty canopy just to reach a faulty starter motor.
Exposing an open unit to the elements carries severe risks. You face accelerated corrosion of the steel skid and engine block. Water ingress will cause winding insulation breakdown in the alternator. Airborne particulate damage will destroy internal engine components. If water gets into the diesel fuel tank, it will breed microbes that clog the fuel injectors and shut down the engine.
Mitigation is straightforward but mandatory. You must install the unit in a weather-tight, climate-managed structure. Specify IP23 or higher rated alternators to resist moisture. Install anti-condensation heaters within the alternator housing to keep the copper windings dry when the unit is offline. Use heavy-duty air intake filters to block dust and debris from entering the combustion chamber.
Placing a massive combustion engine inside a room creates massive heat. The risks include engine overheating, localized hot-spotting on electrical cables, and reduced power efficiency. Engines derate (lose power) when they ingest hot ambient air. If the room temperature exceeds 104 degrees Fahrenheit (40 degrees Celsius), the engine cannot produce its nameplate kilowatt rating.
You must engineer forced-air ventilation systems for the room. Precise calculation of combustion air requirements is necessary to ensure the engine breathes properly. You must install properly sized radiator exhaust ducting. This ducting must seal against the radiator face and discharge hot air directly outdoors, preventing it from recirculating inside the room. You also need motorized intake louvers that open automatically the moment the engine receives a start signal.
An exposed engine presents physical hazards. Unauthorized personnel could access hazardous moving parts like fan belts and radiator blades. There is a high risk of exposure to high-voltage terminals. Vandalism or fuel theft are also major concerns if the unit is unsecured. A spinning radiator fan can easily sever a limb if someone trips and falls against the unit.
Implement strict restricted access protocols. Keep mechanical room doors locked at all times. Install physical guardrails and safety mesh around the skid base to protect workers walking past the unit. Ensure localized emergency stop (E-stop) buttons are highly visible and easily accessible from multiple angles. You must also apply high-visibility warning labels to all hot exhaust surfaces and high-voltage junction boxes.
To successfully deploy an open architecture generator, you must take deliberate engineering steps. Follow these actions to ensure reliability and safety:
Verify your structural footprint, ensuring you have adequate space for both the skid base and all mandatory electrical clearance zones.
Design a dedicated ventilation path that isolates radiator exhaust from engine intake air to prevent thermal derating.
Install physical barriers and implement strict lock-out/tag-out procedures to protect personnel from exposed moving parts.
Consult local acoustic regulations and install appropriate exhaust silencers and room baffles before commissioning the unit.
A: No, you should not install an open unit directly outdoors without protection. It lacks weatherproofing. Rain, snow, and dust will rapidly degrade the electrical components and cause severe corrosion. You must place it inside a building, a modified shipping container, or a dedicated weather shelter.
A: You must adhere to local electrical codes, such as the NEC, which typically require a minimum of 3 to 4 feet of clearance around all live electrical components. Additionally, you need enough physical space for mechanics to safely remove engine components and access fluid drain valves.
A: Yes. Because they lack sound-attenuating canopies and acoustic foam, open units project raw engine and cooling fan noise directly into the surrounding environment. They often exceed 100 decibels at one meter, requiring external room soundproofing to meet safety regulations.
A: Indoor installations require engineered ventilation. You need intake louvers large enough to supply both combustion air for the engine and cooling air for the radiator. You must also install a sealed exhaust duct that pushes hot radiator air directly outside the building.
A: Data centers prioritize absolute reliability and rapid maintenance. Open units installed in secure, climate-controlled halls allow facility engineers to perform instant visual inspections. Mechanics can access all components immediately without navigating cramped enclosures, reducing repair times during critical outages.
