A sound-attenuated canopy is only half the equation; improper exhaust routing can instantly negate the acoustic benefits of a silent diesel generator while introducing severe operational hazards. Facility managers and engineers face the dual challenge of safely expelling toxic, high-temperature exhaust gases (often exceeding 500°C) while strictly adhering to OEM backpressure limits, structural constraints, and local noise ordinances. A poorly designed exhaust path leaks deafening noise and chokes the engine, leading to catastrophic failure on site.
To protect engine lifespan and ensure compliance, decision-makers must evaluate exhaust routing through a framework of fluid dynamics, thermal management, and acoustic attenuation. This guide outlines the technical requirements for designing a compliant, high-efficiency exhaust system that maintains the true performance of your power equipment without compromising site safety.
Backpressure is the Primary Constraint: Excessive bends and undersized piping increase exhaust backpressure, leading to reduced power output, higher fuel consumption, and premature engine failure.
Thermal and Vibrational Isolation are Non-Negotiable: Exhaust systems must incorporate flexible stainless-steel bellows, dedicated structural hangers, and thermal thimbles to absorb engine vibration and prevent structural fire hazards.
Sizing Scales with Capacity: Sizing calculations must account for the generator's scale, spanning from compact 10 kVA standby units to massive 2 MVA utility-scale silent type generator installations.
OEM Specifications Dictate Design: Routing geometry and pipe diameters must be mathematically verified against the specific exhaust flow rates and backpressure tolerances of the engine manufacturer.
Acoustic Integrity Requires Strategic Silencer Placement: The physical location and grade (Industrial, Residential, Critical, Hospital) of the exhaust silencer directly dictate the final decibel output at the property line.
Backpressure is the resistance exhaust gases face as they travel from the engine manifold to the atmosphere. High backpressure directly reduces volumetric efficiency. The engine cannot expel burnt gases fast enough to draw in fresh air. Exceeding OEM backpressure limits causes elevated exhaust temperatures, turbocharger failure, loss of power output, and severe carbon buildup. Engineers calculate total system backpressure based on pipe length, diameter, and the equivalent lengths of elbows and silencers.
Field technicians use specific formulas to determine the total restriction. You must account for every single fitting in the run. A straight pipe has a known friction loss, but elbows multiply that restriction significantly. We measure this in inches of mercury (inHg) or kilopascals (kPa). If the calculated backpressure exceeds the engine data sheet limit, you must increase the pipe diameter.
| Fitting Type | Equivalent Pipe Length (Multiplier) | Impact on Backpressure |
|---|---|---|
| Standard 90° Elbow | 15 to 20 times pipe diameter | High restriction |
| Long Radius 90° Sweep | 10 to 12 times pipe diameter | Moderate restriction |
| 45° Elbow | 5 to 7 times pipe diameter | Low restriction |
| Standard Tee | 30 to 40 times pipe diameter | Severe restriction |
Exhaust piping undergoes significant linear expansion under load. Steel expands approximately 1.2mm per meter for every 100°C rise in temperature. A 10-meter exhaust run operating at 500°C will grow by nearly 60mm. You must plan for this movement. Thermal insulation, or lagging, protects personnel, reduces ambient room temperature, and maintains exhaust gas velocity for an improved draft. Without proper thermal management, expanding pipes warp, crack, or damage building structures.
We wrap indoor exhaust pipes with high-density fiberglass or calcium silicate insulation, covered by an aluminum jacket. This keeps the heat inside the pipe. Hotter exhaust gas moves faster, which helps overcome backpressure. Uninsulated pipes dump massive heat loads into the generator room, forcing the ventilation fans to work harder and potentially tripping the engine on high ambient temperature.
Exhaust gas pulsations generate intense low-frequency noise. Breakout noise occurs when sound waves penetrate thin-walled piping, turning the exhaust pipe itself into a noise source. Using high-density materials and proper insulation mitigates breakout noise. The acoustic integrity of the system remains intact only if the pipe wall thickness matches the sound attenuation requirements of the site.
Schedule 40 steel pipe is the minimum standard for a reason. Thin-wall tubing vibrates like a drum. On hospital or residential sites, we often specify double-wall insulated piping not just for heat, but to block low-frequency rumble from escaping the pipe before it reaches the silencer.
Route via the shortest, straightest path possible. Every bend adds resistance. Standard 90-degree elbows impose a severe backpressure penalty compared to 45-degree sweeps. Long-radius sweeps maintain smooth gas flow and minimize restriction. When laying out the engine room, position the generator so the exhaust outlet points directly toward the exterior wall or roof penetration.
Identify the shortest path to the exterior termination point.
Count the required directional changes.
Replace standard 90-degree elbows with long-radius sweeps wherever space permits.
Calculate the total equivalent length of the proposed route.
Verify the total length against the maximum allowable backpressure.
Pipe sizing varies drastically between small commercial units and multi-megawatt industrial plants. When routing exceeds standard lengths, the pipe diameter must increase. We typically step up the diameter by one inch for every 10 meters of run. Undersizing causes choking and overheating. Oversizing leads to excessive condensation and reduced gas velocity, which hampers exhaust dispersion at the termination point.
For a 100 kVA unit, a 4-inch pipe might suffice for a short run. For a 2 MVA unit, you are looking at 14-inch to 16-inch flanged piping. Never reduce the pipe size below the diameter of the engine turbocharger outlet. Always transition to a larger size using a smooth, tapered increaser fitting rather than a flat bushing to avoid creating turbulence.
Prefabricated, UL-listed double-wall insulated exhaust piping offers superior thermal and safety advantages for tight indoor spaces. These systems snap together with V-bands and require no field welding. Field-fabricated Schedule 40 black iron or carbon steel provides a cost-effective alternative for standard indoor routing when combined with manual lagging. For highly corrosive environments or exterior vertical runs, 304 or 316 grade stainless steel provides long-term installation integrity.
Carbon steel rusts quickly when exposed to weather or condensation. If you run carbon steel outside, it requires high-temperature paint and constant maintenance. Stainless steel costs more upfront but eliminates exterior corrosion issues. Double-wall systems save massive amounts of labor on site because the insulation is built-in.
Condensation traps, sloping lines, and drain valves must sit at the lowest points of vertical runs to prevent acidic water ingress into the turbocharger. Counterbalanced rain caps, mitered cuts, or angled exhaust terminations with bird screens protect the system from weather elements while allowing unrestricted gas flow.
Diesel exhaust contains water vapor and sulfur. When the engine shuts down, the pipe cools, and this vapor condenses into sulfuric acid. If the pipe slopes toward the engine, this acid drains directly into the turbocharger, destroying the bearings. Always slope horizontal runs slightly away from the engine and install a drip leg with a petcock valve at the base of any vertical rise.
Routing exhaust through modern engine rooms involves navigating complex HVAC ducts, cable trays, plumbing, and load-bearing structures. Designers must maintain minimum clearance distances from combustible materials as dictated by NFPA 37 or local building codes to prevent fire hazards. You cannot simply strap a 500°C pipe to a wooden joist or run it touching a PVC water line.
We use ventilated thimbles when passing through walls or roofs. The clearance to combustibles depends on the insulation thickness. A heavily lagged pipe might only require a 6-inch clearance, while an uninsulated pipe might need 18 inches or more. Always consult the local fire marshal during the design phase.
No exhaust piping weight can be supported by the engine manifold or turbocharger outlet flange. Spring hangers absorb vertical thermal expansion and isolate vibrations. Fixed anchor points and guiding rollers control the direction of thermal pipe growth, preventing stress fractures. The building structure must carry the entire weight of the exhaust system.
Install the first support hanger immediately after the flexible bellows.
Use spring-loaded hangers for long horizontal runs to allow for thermal lift.
Place fixed anchors at strategic points to force thermal expansion in a specific direction.
Use roller guides to keep the pipe aligned as it expands and contracts.
Ensure the roof structure can handle the point load of heavy industrial silencers.
A flexible exhaust section, usually a stainless-steel bellows, installs directly at the engine manifold. Rigid piping transfers engine vibration to the building structure, leading to structural fatigue, joint fractures, and noise propagation. The bellows isolates these vibrations effectively. Never use the flexible bellows to correct pipe misalignment. It must be installed perfectly straight.
If you force a bellows into a curve to make a connection, it will tear under load. The bellows handles axial movement (push and pull) and vibration, not lateral offset. We often install a second bellows on very long runs or where the pipe crosses building expansion joints.
Routing exhaust through walls requires specific technical measures. Ventilated wall thimbles maintain continuous thermal breaks, especially when passing through combustible materials. The thimble allows air to circulate around the hot pipe, keeping the surrounding wall structure cool. Seal the exterior side of the thimble with high-temperature silicone to prevent rain ingress.

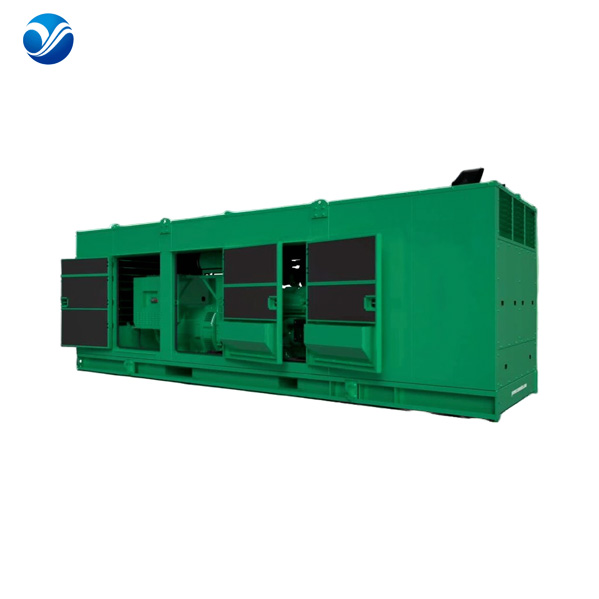

A Cummins silent generator has specific exhaust flow characteristics and proprietary backpressure thresholds detailed in their installation manuals. Adhering to recommended turbocharger flange connection protocols and bellows flex lengths prevents warranty voiding. Cummins engines often push high exhaust gas volumes, requiring careful attention to pipe sizing on runs exceeding 15 meters.
We always check the Cummins data sheet for the specific engine model. The maximum allowable backpressure is a hard limit. If you exceed it, the engine controller will log high exhaust temperature faults and eventually derate the power output to protect the block.
When installing a Perkins silent generator, engineers evaluate specific requirements for exhaust gas temperature management and silencer matching. Variations in engine displacement and turbocharger configurations directly impact pipe sizing calculations. Perkins units are highly efficient, but that efficiency relies on unrestricted exhaust flow.
Perkins installation guidelines often specify exact distances for silencer placement relative to the turbocharger to prevent standing wave resonance. We follow these measurements strictly to avoid acoustic feedback loops that can damage the exhaust valves.
Standard exhaust configurations for an SDEC silent generator focus on cost-effective, high-durability routing for heavy-duty industrial applications. Specific maintenance clearances and heat shield requirements around the exhaust manifolds ensure safe operation. SDEC engines are rugged, making them popular for mining and construction sites where exhaust routing must withstand severe vibration.
On SDEC installations, we prioritize heavy-duty flanged connections over slip-fits. The vibration profiles on industrial sites demand robust hardware. We also ensure the heat shields are easily removable for routine manifold inspections.
Silencer grades determine the level of noise reduction. Silencer selection maps to the facility location, balancing attenuation needs against backpressure limits. A hospital grade silencer provides excellent noise reduction but imposes much higher backpressure than an industrial grade unit.
| Silencer Grade | Typical Attenuation (dBA) | Best Application |
|---|---|---|
| Industrial | 15 - 20 dBA | Remote sites, manufacturing plants |
| Residential | 20 - 25 dBA | Light commercial, retail zones |
| Critical | 25 - 32 dBA | Office buildings, hotels |
| Hospital | 35 - 50 dBA | Hospitals, quiet zones, residential areas |
Placing the silencer close to the engine absorbs high-frequency sound immediately. Placing it near the termination point handles different acoustic dynamics and reduces breakout noise along the pipe run. Heavy, high-attenuation silencers require independent overhead suspension systems to prevent structural strain on the roof or ceiling.
We prefer mounting the silencer inside the generator room whenever possible. This keeps the heavy equipment out of the weather and makes maintenance easier. If the silencer must go on the roof, it requires a structural steel frame and weather-proof cladding.
Dedicated routing paths keep exhaust and sound away from sleeping areas and building HVAC fresh air intakes. Integrating Diesel Oxidation Catalysts (DOC) or Diesel Particulate Filters (DPF) within the exhaust routing scrubs emissions, soot, and odor. This is mandatory in dense urban environments.
You cannot dump diesel exhaust near a fresh air louver. The HVAC system will pull the fumes directly into the building. We use wind rose data to determine prevailing wind directions and route the exhaust termination downwind of any sensitive receptors.
Exhaust leaks in enclosed generator rooms pose lethal risks due to carbon monoxide accumulation. Continuous welded joints are mandated over threaded fittings in critical indoor spaces and occupied buildings to ensure absolute gas tightness. Slip-fit connections with U-bolts are unacceptable inside a building.
We pressure test indoor exhaust systems before commissioning. A small pinhole weld leak can fill a basement generator room with carbon monoxide in minutes. Install commercial-grade CO detectors interlocked with the generator control panel to shut down the engine if a leak occurs.
Exhaust termination height complies with regulations, maintaining minimum distances above rooflines and away from operable windows, doors, and air intakes. Prevailing winds affect exhaust gas dispersion, requiring careful planning to protect downwind air-quality zones. Most codes require the exhaust to terminate at least 10 feet above the roof deck and 10 feet away from any property line.
We use high-velocity discharge cones on roof terminations. These cones accelerate the exhaust gas upward, pushing the plume high into the air where it disperses safely, rather than settling back down onto the roof.
Frequent contractor errors include supporting the weight of the exhaust system on the engine manifold, ignoring thermal expansion, and failing to install adequate condensation drains. Avoiding these mistakes ensures system longevity and safety. Another common failure is using standard zinc-plated bolts on exhaust flanges; the heat destroys the zinc, and the bolts seize. Always use high-temperature stainless steel or Grade 8 hardware.
Calculate total system backpressure using the exact pipe length and fitting count before purchasing materials.
Install a stainless-steel flexible bellows directly at the engine manifold to isolate vibration.
Support the entire weight of the exhaust system from the building structure using spring hangers.
Insulate all indoor exhaust piping to protect personnel and reduce room ambient temperature.
Verify the termination point clears all building air intakes and complies with local fire codes.
A: Backpressure is calculated using the exhaust gas flow rate, pipe diameter, total straight pipe length, and the equivalent lengths of all elbows and silencers. Compare this total against the engine manufacturer's maximum allowable limit.
A: No. Generator exhaust temperatures routinely exceed 500°C, which will instantly melt PVC. Use Schedule 40 black iron, carbon steel, or stainless steel piping.
A: Excessive vibration usually indicates a missing or failed flexible stainless-steel bellows at the engine manifold, or rigid piping that lacks proper spring hangers to isolate engine movement.
A: Yes, if the exhaust terminates vertically outdoors. Rain caps or mitered cuts prevent water from entering the piping, which can cause severe turbocharger and engine damage.
A: Local building codes typically require exhaust terminations to be at least 10 feet away from any operable windows, doors, or HVAC air intakes to prevent carbon monoxide poisoning.
A: Lagging, or thermal insulation, keeps the heat inside the pipe. This protects personnel from burns, reduces the heat load in the generator room, and maintains exhaust gas velocity.
